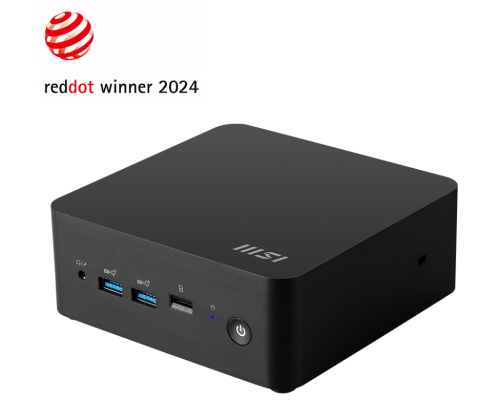

Cubi NUC 1MG-208BES - i3-100U, Intel UMA Graphics, Non-OS
EAN 4711377270694
Cubi NUC 1MG-208BES - i3-100U, Intel UMA Graphics, Non-OS Sistema operativo OS N A Operating Systems N A Modelo Part No 936-B0B111-208 MKT Name Cubi NUC 1MG MKT Spec Cubi NUC 1MG-208BES Color ID1 Black-Black-Black SKU Number 00B0B111-208 Chipset Chipsets Soc Memoria Memory Size N A Memory Type N A Memory Speed N A Module Type SO-DIMM Memory Slot(Total) 2 Memory Slot(Free) 2 Max Capacity Max 64GB Procesador CPU Number Intel Core 3 Processor 100U CPU Clock 1.2GHz CPU Cores 6 TDP 15W Max Turbo Frequency up to 4.70 GHz Cache 10 MB Intel® Smart Cache Threads 8 Gráficos GPU1 Vendor N A GPU1 MKT Name N A GPU1 Number N A GPU1 VRAM Size N A Audio Audio Chipset Realtek ALC256 Audio Type 2.1 Channel HD Audio Almacenamiento SSD Interface N A SSD Form Factor N A SSD Config N A SSD Size N A HDD1 Interface N A HDD1 Form Factor N A HDD1 Size N A HDD1 RPM N A ODD(Type) N A ODD Height N A ODD Type N A mSATA slots(Free) 0 M.2 slots(Total) 2 M.2 slots(Free) 2 2.5“ Drive Bays(Total) 1 2.5“ Drive Bays (Free) 1 3.5“ Drive Bays(Free) 0 Comunicaciones LAN 2x Intel I226-V WLAN Version Wi-Fi 6E+BT BT Version 5.3 Puertos de E S (laterales) Mic-in Headphone-out combo 1 Card Reader 1 USB 3.2 Gen 2 (10G) Type A 2 Puertos de E S (Traseros) RJ45 2 HDMI out 2x (v2.1) Lock type Kensington Lock USB 3.2 Gen 2 (10G) Type A (R) 2 Dimensiones y peso Weight (Net kg) 0.625 Weight (Gross kg) 1.45 Product Dimension (WxDxH) (mm) 135.6 x 132.5 x 50.10 Product Dimension (WxDxH) (inch) 5.34 x 5.22 x 1.97 Inside Carton Dimension (WxDxH) (mm) 205 x 220 x 94 Inside Carton Dimension (WxDxH) (inch) 8.07 x 8.66 x 3.7 Net Weight (lbs) 1.38 Gross Weight (lbs) 3.2 VESA VESA size 100 x 100 mm Mecánica y medio ambiente Regulatory Compliance FCC(Class B), CB CE, UL(CUL), BSMI, VCCI, RCM(C-Tick), Epeat Sliver Acesorios AC Adaptor 1 Power Cord 1 Warranty Card N A Quick Guide 2 User Manual N A VESA Mount kit 1 Keyboard N A Keyboard Interface N A Mouse N A Mouse Interface N A Power Switch 1 EAN; 4711377270694
Preço:
Sistema operativo OS N A
Operating Systems N A
Modelo
Part No 936-B0B111-208
MKT Name Cubi NUC 1MG
MKT Spec Cubi NUC 1MG-208BES
Color ID1 Black-Black-Black
SKU Number 00B0B111-208
Chipset Chipsets Soc
Memoria
Memory Size N A
Memory Type N A
Memory Speed N A
Module Type SO-DIMM
Memory Slot(Total) 2
Memory Slot(Free) 2
Max Capacity Max 64GB
Procesador
CPU Number Intel Core 3 Processor 100U
CPU Clock 1.2GHz
CPU Cores 6
TDP 15W
Max Turbo Frequency up to 4.70 GHz
Cache 10 MB Intel® Smart Cache
Threads 8
Gráficos
GPU1 Vendor N A
GPU1 MKT Name N A
GPU1 Number N A
GPU1 VRAM Size N A
Audio Audio Chipset Realtek ALC256
Audio Type 2.1 Channel HD Audio
Almacenamiento
SSD Interface N A
SSD Form Factor N A
SSD Config N A
SSD Size N A
HDD1 Interface N A
HDD1 Form Factor N A
HDD1 Size N A
HDD1 RPM N A
ODD(Type) N A
ODD Height N A
ODD Type N A
mSATA slots(Free) 0
M.2 slots(Total) 2
M.2 slots(Free) 2
2.5" Drive Bays(Total) 1
2.5" Drive Bays (Free) 1
3.5" Drive Bays(Free) 0
Comunicaciones
LAN 2x Intel I226-V
WLAN Version Wi-Fi 6E+BT
BT Version 5.3
Puertos de E S (laterales)
Mic-in Headphone-out combo 1
Card Reader 1
USB 3.2 Gen 2 (10G) Type A 2
Puertos de E S (Traseros)
RJ45 2
HDMI out 2x (v2.1)
Lock type Kensington Lock
USB 3.2 Gen 2 (10G) Type A (R) 2
Dimensiones y peso
Weight (Net kg) 0.625
Weight (Gross kg) 1.45
Product Dimension (WxDxH) (mm) 135.6 x 132.5 x 50.10
Product Dimension (WxDxH) (inch) 5.34 x 5.22 x 1.97
Inside Carton Dimension (WxDxH) (mm) 205 x 220 x 94
Inside Carton Dimension (WxDxH) (inch) 8.07 x 8.66 x 3.7
Net Weight (lbs) 1.38
Gross Weight (lbs) 3.2
VESA VESA size 100 x 100 mm
Mecánica y medio ambiente Regulatory Compliance FCC(Class B), CB CE, UL(CUL), BSMI, VCCI,
RCM(C-Tick), Epeat Sliver
Acesorios
AC Adaptor 1
Power Cord 1
Warranty Card N A
Quick Guide 2
User Manual N A
VESA Mount kit 1
Keyboard N A
Keyboard Interface N A
Mouse N A
Mouse Interface N A
Power Switch 1
EAN; 4711377270694
